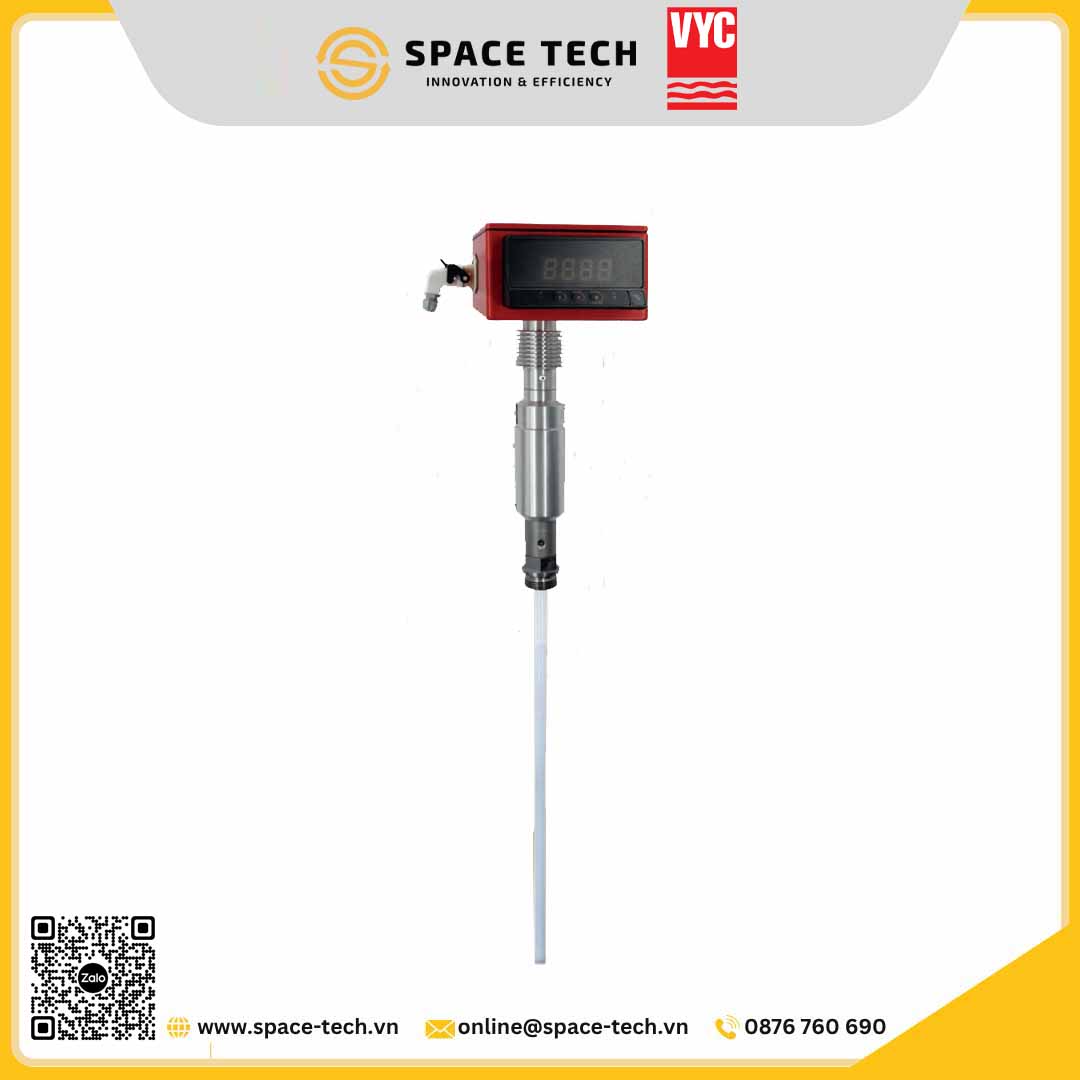

VYC - Capacitive electrode based electronic level controller 276

VYC – Capacitive electrode based electronic level controller 276

Đánh giá product
  • Model: 276
    Connection size: 1 inch.
    Connection type: Whitworth male thread per ISO 228/1 (DIN 259); NPT thread supported via adapter.
    Maximum working pressure: 32 bar.
    Maximum working temperature: 238°C.
    Maximum ambient temperature: 70°C.
    Protection class: IP65 per EN 60529.
    Overtemperature protection setting: 102°C.
    Minimum water conductivity: 0.5 µS/cm at 25°C and 20 µS/cm at 238°C.
    Installation length (L): 129 mm.
    Diameter (D): 15 mm.
    Weight: 0.85–1.50 kg, depending on model.
    Effective measuring height (h): 300–1,500 mm, depending on model.
    Origin: VYC – Spain.
Hỗ trợ nhanh qua ZALO
Categories: , , Product ID: 26979

Description

Đánh giá product
  • Continuous level monitoring and control when combined with a motorised valve.
  • High and low water level alarm.
  • Electrode design with multiple sealing points for reliable steam-tightness.
  • Durable materials resistant to high temperatures, wear and corrosion.
  • Reliable operation under high-pressure and high-temperature conditions.
  • Simple installation, easy adjustment and minimal maintenance.
  • Centralised control with flexible control settings.
  • Suitable for steam boilers, hot water boilers, autoclaves, pressure vessels and feedwater tanks.
  • Compliant with EN 12952, EN 12953 and applicable EU directives.
